Fiber Optic Passive Components
The backbone of modern optical communication systems, enabling high-speed data transmission with unparalleled efficiency and reliability. Our comprehensive range includes essential components that integrate seamlessly with advanced technologies such as fiber-optic pressure sensors.
The Foundation of Optical Communication
Passive fiber optic components form the critical infrastructure that enables the transmission, manipulation, and management of light signals in optical networks. Unlike active components that require power, these devices operate through physical principles such as reflection, refraction, and diffraction to perform their functions.
From data centers to telecommunications networks, from medical equipment to industrial systems, these components ensure reliable, high-performance optical signal handling. Modern advancements have even enabled integration with specialized devices like fiber-optic pressure sensors, expanding their applications in precision measurement and monitoring systems.
This comprehensive guide explores the seven essential categories of fiber optic passive components, their operating principles, technical specifications, and diverse applications across industries.

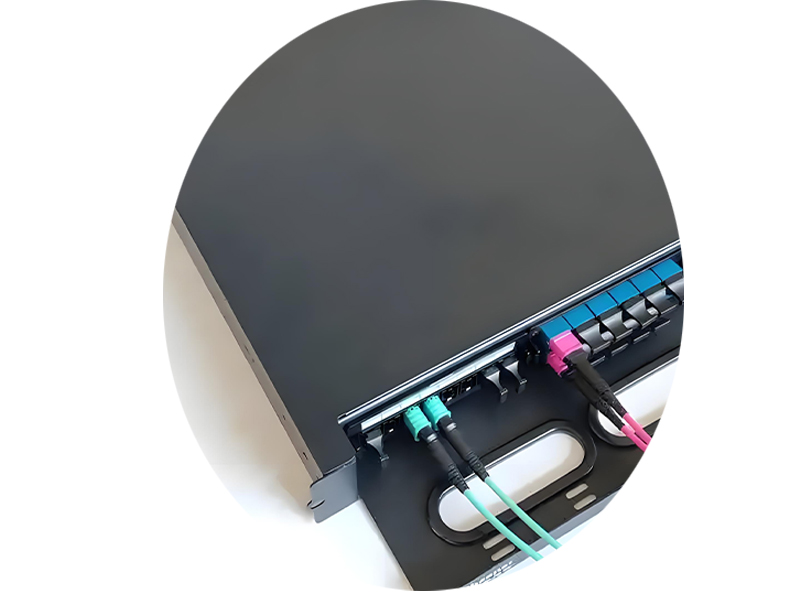

Fiber Optic Connectors
Fiber Optic Connectors are mechanical devices designed to align and join optical fibers, enabling efficient light signal transmission between them. These critical components ensure minimal signal loss while providing a secure, detachable connection that maintains the integrity of the optical path.
The key performance parameters for these connectors include insertion loss (typically less than 0.3 dB), return loss (greater than 40 dB for single-mode), repeatability, and durability (often specified for thousands of mating cycles). Precision engineering ensures that the fiber cores are perfectly aligned, as even micron-level misalignment can cause significant signal degradation.
Common types include LC, SC, ST, FC, and MPO connectors, each with specific design features suited for different applications. LC connectors, with their 1.25mm ferrule, have become the standard in high-density data center environments due to their compact size. SC connectors, featuring a push-pull mechanism, are widely used in telecommunications networks for their excellent performance and ease of use.
These connectors find applications across various industries, from telecommunications and data centers to medical imaging and industrial sensing. In specialized environments, they are often integrated with monitoring systems incorporating fiber-optic pressure sensors to ensure optimal performance under varying operational conditions.
Advanced connector designs now include features such as expanded beam technology for rugged environments, where dust and vibration could compromise traditional physical contact connectors. Hybrid connectors that combine optical and electrical contacts are also gaining popularity in integrated systems requiring both data and power transmission.
Common Connector Types Comparison
| Type | Ferrule Size | Typical Loss | Applications |
|---|---|---|---|
| LC | 1.25mm | <0.2dB | Data centers, high density |
| SC | 2.5mm | <0.3dB | Telecommunications |
| ST | 2.5mm | <0.5dB | Legacy systems, CCTV |
| MPO | Multiple | <0.3dB | High-speed parallel links |
Optical Couplers
Optical Couplers are passive devices that distribute or combine optical signals between multiple fibers. These essential components enable signal splitting, combining, or redistribution in optical networks, allowing for flexible signal routing and efficient network design.
The operation of optical couplers is based on the principle of light wave interference, where light from one fiber is transferred to others through evanescent field coupling. This can be achieved through various manufacturing techniques, including fused biconical taper (FBT) and planar lightwave circuit (PLC) methods.
Couplers are categorized by their port configuration, most commonly 1x2, 2x2, or 1xN (where N is the number of output ports). They can be either symmetric, splitting power equally between outputs, or asymmetric, with predefined power distribution ratios (such as 90/10, 70/30).
Key performance specifications include insertion loss, excess loss, isolation, and uniformity. PLC couplers typically offer superior performance with lower excess loss and better uniformity across channels, making them ideal for wavelength division multiplexing (WDM) systems and high-density applications.
In industrial applications, Optical Couplers play a crucial role in distributed sensing networks, often working in conjunction with fiber-optic pressure sensors to collect and aggregate data from multiple measurement points. This enables efficient monitoring of large-scale industrial systems with minimal signal degradation.
2x2 PLC Optical Coupler with wavelength-independent performance across 1260-1650nm range
Tunable Optical Filters
Tunable Optical Filters are sophisticated devices that selectively transmit or reflect specific wavelengths of light while attenuating others, with the added capability of adjusting the center wavelength of operation. This tunability makes them indispensable in modern optical networks that require flexibility and reconfigurability.
These filters operate on various principles, including Fabry-Perot interferometry, fiber Bragg gratings (FBGs), acousto-optic modulation, and liquid crystal technology. Each technology offers distinct advantages in terms of tuning range, speed, resolution, and insertion loss characteristics.
Key performance parameters include tuning range (often spanning 1520-1620nm for C and L bands), wavelength resolution (as fine as 0.1nm), tuning speed (from milliseconds to microseconds), insertion loss (typically <3dB), and out-of-band rejection (>40dB).
Tunable Optical Filters find applications in wavelength division multiplexing (WDM) systems, optical performance monitoring, spectroscopy, and fiber-optic sensing. In sensing applications, they can be paired with fiber-optic pressure sensors to enable wavelength-encoded measurements, enhancing sensitivity and enabling multi-point sensing on a single fiber.
Advanced tunable filters now offer software-defined operation, allowing remote configuration and dynamic adjustment to changing network conditions. This capability is particularly valuable in software-defined networking (SDN) environments, where network resources can be optimized in real-time based on traffic patterns and performance requirements.
Tuning Mechanisms Comparison
-
Fiber Bragg Grating (FBG): Mechanical strain tuning, excellent stability, moderate speed
-
Fabry-Perot: Piezoelectric tuning, high resolution, fast response
-
Acousto-optic: Electronic tuning, very fast, broad tuning range
-
Liquid Crystal: Voltage-controlled, low power, moderate speed
Wavelength Division Multiplexers/Demultiplexers
Wavelength Division Multiplexers/Demultiplexers (WDMs) are fundamental components in high-capacity optical networks, enabling the transmission of multiple optical signals simultaneously over a single fiber by using different wavelengths (colors) of light. Multiplexers combine multiple signals onto one fiber, while demultiplexers separate them at the receiving end.
These devices have revolutionized optical communications by dramatically increasing bandwidth without requiring new fiber installations. WDM technology comes in several variants, including Coarse WDM (CWDM) and Dense WDM (DWDM). CWDM typically supports 8-16 channels with 20nm spacing in the 1270-1610nm range, while DWDM can support 40-160+ channels with 0.8-1.6nm spacing in the 1530-1625nm range.
WDMs can be constructed using various technologies, including thin-film filters (TFF), arrayed waveguide gratings (AWG), fiber Bragg gratings (FBG) with circulators, and planar lightwave circuits (PLC). Each technology offers distinct advantages in terms of channel count, insertion loss, isolation, and temperature stability.
Key performance metrics include insertion loss (typically <1.5dB per channel for AWG), channel isolation (>25dB), passband width, and temperature stability. Advanced WDMs incorporate monitoring ports that allow for signal power measurement without disrupting main channel transmission.
In addition to telecommunications, WDMs are increasingly used in sensing networks, where they enable multiple fiber-optic pressure sensors to operate on a single fiber by assigning each sensor a unique wavelength. This significantly reduces system complexity and installation costs in large-scale monitoring applications.
CWDM vs DWDM Comparison
Optical Modulators
Optical Modulators are devices that modify properties of light (amplitude, phase, frequency, or polarization) to encode information onto an optical carrier signal. While some modulators are active devices requiring electrical power, many passive and semi-passive modulator designs exist that leverage material properties to achieve modulation without active amplification.
The most common types include electro-optic modulators (EOMs), which use materials whose refractive index changes with applied electric field; acousto-optic modulators (AOMs), which use sound waves to diffract and modulate light; and magneto-optic modulators, which use the Faraday effect to rotate polarization based on magnetic fields.
Key performance characteristics include modulation speed (up to 100+ Gbps for advanced EOMs), insertion loss, extinction ratio (typically >20dB), bandwidth, and drive voltage requirements. These parameters are critical in high-speed communication systems where signal integrity and transmission efficiency are paramount.
In fiber optic communication systems, Optical Modulators sit at the transmitter end, converting electrical signals into modulated optical signals for transmission over fiber. They enable the high data rates required in modern networks, supporting advanced modulation formats like QPSK, 16-QAM, and 64-QAM that pack more information into each optical pulse.
Beyond telecommunications, these modulators find applications in sensing systems, where they can encode measurement data from fiber-optic pressure sensors onto optical signals for high-fidelity transmission. They also play critical roles in laser radar (LIDAR), spectroscopy, and optical computing systems.
Key Modulation Formats
OOK (On-Off Keying), ASK (Amplitude Shift Keying), FSK (Frequency Shift Keying), PSK (Phase Shift Keying), QAM (Quadrature Amplitude Modulation)
Optical Isolators and Circulators
Optical Isolators and Circulators are non-reciprocal devices that control the direction of light propagation in optical systems. They are essential for protecting sensitive components from unwanted reflected light, which can cause signal degradation, instability, and even damage to lasers and other active devices.
Optical isolators allow light to travel in one direction while blocking propagation in the reverse direction. They typically achieve isolation greater than 30dB while introducing minimal insertion loss (less than 0.5dB). Their operation is based on the Faraday effect, where the polarization of light rotates when passing through a magneto-optic material in the presence of a magnetic field.
Optical circulators are multi-port devices (usually 3 or 4 ports) that direct light sequentially from one port to the next in a unidirectional manner (e.g., Port 1 → Port 2, Port 2 → Port 3, Port 3 → Port 1). They offer high isolation between non-sequential ports (>50dB) and low insertion loss between sequential ports (<1dB).
These devices find applications in laser systems, fiber amplifiers, WDM networks, and test equipment. In fiber laser systems, isolators prevent back-reflected light from destabilizing the laser cavity. In WDM systems, circulators enable add-drop functionality, allowing specific wavelengths to be extracted or inserted at intermediate points in a network.
In sensing applications, Optical Isolators and Circulators improve signal-to-noise ratios by preventing backscattered light from interfering with measurement signals, particularly in systems incorporating fiber-optic pressure sensors. This is critical for achieving accurate, reliable measurements in challenging industrial environments.
Optical Isolator
Unidirectional light flow with reverse blocking
3-Port Circulator
Sequential unidirectional light flow
Optical Switches
Optical Switches are devices that route optical signals between different paths in an optical network. They enable dynamic reconfiguration of network topologies, allowing for signal rerouting, protection switching, and network optimization without converting optical signals to electrical form.
These switches come in various configurations, including 1xN (one input to multiple outputs), Nx1 (multiple inputs to one output), and NxN (multiple inputs to multiple outputs). They can be categorized by their switching mechanism, such as mechanical, MEMS (Micro-Electro-Mechanical Systems), liquid crystal, thermo-optic, or acousto-optic.
Each technology offers distinct advantages: mechanical switches provide excellent optical performance with low insertion loss and high isolation but have slower switching times (milliseconds); MEMS switches offer high port counts and moderate switching speeds (microseconds); while solid-state switches (liquid crystal, thermo-optic) provide the fastest switching (nanoseconds) but may have higher insertion loss.
Key performance parameters include insertion loss, isolation, switching speed, repeatability, power handling, and wavelength range. For most applications, insertion loss should be less than 1dB, and isolation greater than 40dB between non-connected ports.
Optical Switches play a critical role in reconfigurable optical add-drop multiplexers (ROADMs), optical cross-connects (OXCs), and test and measurement systems. In sensing networks, they enable sequential addressing of multiple fiber-optic pressure sensors on a single fiber, allowing for time-division multiplexed data acquisition and reducing system complexity.
Optical Switch Technologies Comparison
| Technology | Speed | Loss | Isolation | Port Count |
|---|---|---|---|---|
| Mechanical | ms | <0.5dB | >60dB | Low-Medium |
| MEMS | μs | <1.5dB | >50dB | High |
| Liquid Crystal | μs-ms | <2dB | >40dB | Medium |
| Thermo-optic | ms | <3dB | >30dB | Medium |
Applications Across Industries
Fiber optic passive components serve as the backbone for numerous critical systems across diverse industries, enabling innovation and performance optimization.
Telecommunications
Enabling high-speed, long-distance data transmission through fiber optic networks, supporting global communication infrastructure with components that maximize bandwidth and minimize signal loss.
Data Centers
Facilitating high-density, low-latency connections between servers and storage systems, with components optimized for the high-bandwidth requirements of cloud computing and big data applications.
Medical
Supporting precision instruments for imaging, laser surgery, and patient monitoring, where reliability, compact size, and immunity to electromagnetic interference are critical.
Industrial Sensing
Enabling robust monitoring systems in harsh environments, including fiber-optic pressure sensors, temperature sensors, and vibration monitors for predictive maintenance.
Aerospace & Defense
Providing secure, lightweight communication and sensing solutions for aircraft, satellites, and military systems, where reliability and resistance to harsh conditions are paramount.
Research & Testing
Supporting advanced scientific experiments and optical component testing with high-precision, customizable solutions for specialized measurement and analysis requirements.
Technical Excellence Across All Components
Our fiber optic passive components are engineered to meet the most demanding performance requirements across diverse applications.
Performance Specifications Overview
| Component | Insertion Loss | Isolation | Operating Wavelength | Temperature Range |
|---|---|---|---|---|
| Fiber Optic Connectors | <0.3dB | >40dB | 850-1650nm | -40°C to +85°C |
| Optical Couplers | <0.5dB (excess) | >25dB | 1260-1650nm | -40°C to +85°C |
| Tunable Optical Filters | <3dB | >40dB | 1520-1620nm | -20°C to +70°C |
| WDMs | <1.5dB | >25dB | 1270-1610nm (CWDM) 1530-1625nm (DWDM) |
-40°C to +85°C |
| Optical Modulators | <3dB | >20dB (extinction) | 1310-1550nm | -40°C to +85°C |
| Optical Isolators | <0.5dB | >30dB | 1310-1550nm | -40°C to +85°C |
| Optical Switches | <1.5dB | >40dB | 1260-1650nm | -40°C to +85°C |
| fiber-optic pressure sensors | <1.0dB | >20dB | 1310-1550nm | -40°C to +125°C |
